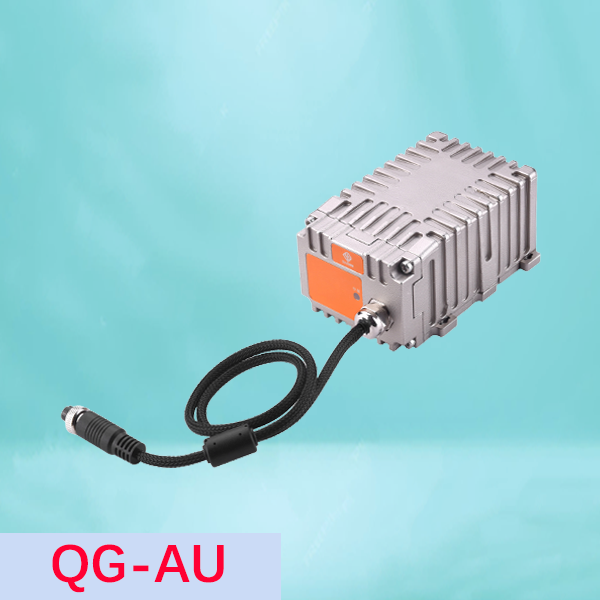

Rugged Car Data Memory ( QG-AU Model )
Rugged Car Data Memory ( QG-AU Model ) - Image 2
Rugged Car Data Memory ( QG-AU Model ) - Image 3

Rugged Car Data Memory
( QG-AU Model )

  • A unique crashworthy data memory device with excellent antishock performance connected to vehicle data recorders( DVR ), car monitoring equipment or other security devices for protection of your data files against fire, water immersion, hard crash or similar tough environments.
  • Reinforced rugged refractory housing shell made of alloy steel 20 CrMO to enhance its resistance against corrosion, hardness and extreme temperature.

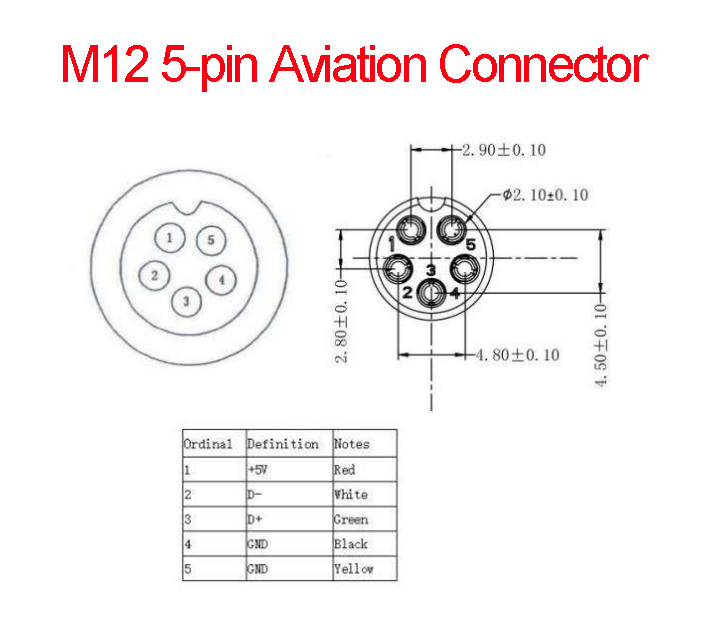

  • M12-5PIN aviation connector.
  • Resistant to 1100℃ high temperature fire
  • Survivable at 100m deep water for 240 hours
  • Stored data files are retrievable immediately after incidents of fire, explosion, immersion, car crash, etc.
  • Recommended for heavy-duty trucks, oil tankers, container vehicles, passenger buses, school buses, etc.
  • A warranty period of two years.
  • Size: 129 x 93 x 62mm
  • NWT: 2.30kg
Get a Quote

Technical Specifications

Item Details
Interface Air connector with USB2.0 adaptor cable
Storage Medium TLC
Writing Circulation TLC: 3000 times
Capacity  32G, 64G, 128G, 256G
Refractoriness 1100℃ / 15min + 260℃ / 120min
Immersion 100m underwater, 240hr
Impact Force 55g / 100ms (all axes)
110g / 50ms (all axes)
Static Extrusion Force 166kN (three axes), 5min
Antiknock 0.5ms, 1008KPa (1kg TNT / 1m) — top side
Pin Penetration 23kg / 1.5m, 0.4cm²
Anti-explosion Performance 0.5ms: 1008KPa (1kg TNT / 1m)
Power Input: 5V ± 5%
Consumption: < 0.5W
Temperature Range -40 to 75℃ (operation)
-40 to 85℃ (storage)
NWT 2.3kg
Dimensions 129 × 93 × 62mm
