TR-C: Uncompromising Data Security – Fireproof & Crashworthy Memory for Trains & Vehicles

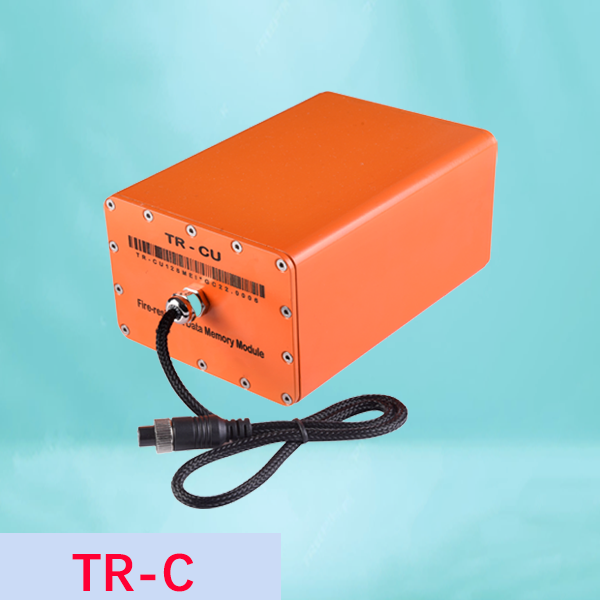

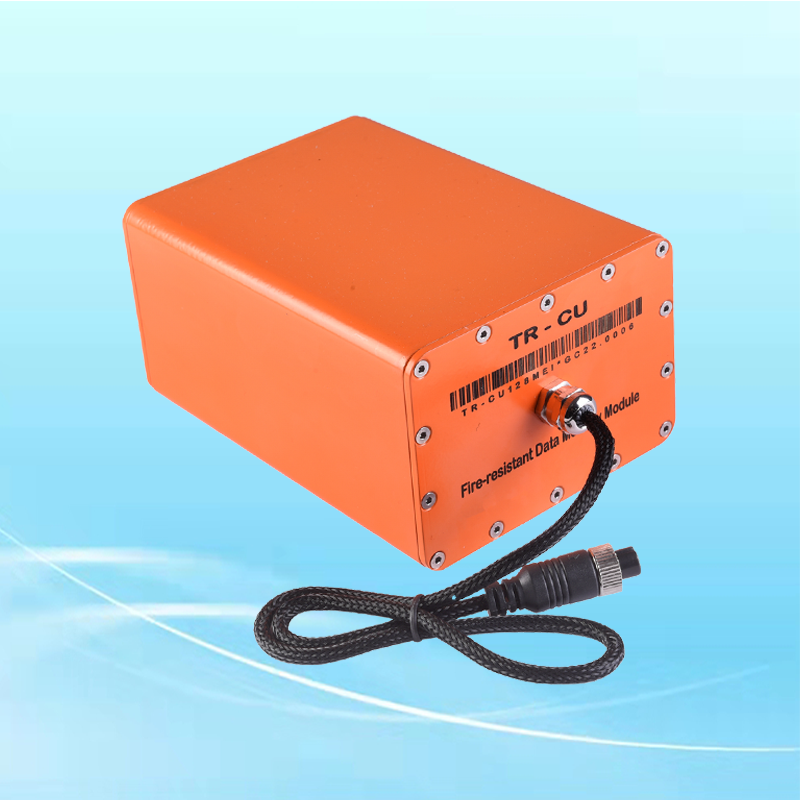

Crashworthy Fireproof Data Memory Device TR – C Model ( for trains and other vehicles )

  • A rugged crashworthy memory device specially designed for protection of data against extremely harsh events such as fire, explosion, immersion and hard crash.
  • Withstanding 1100℃ high temperature fire continuously for 60min or 750℃ fire for 60min followed by 600min 260℃ fire.
  • The stored data can be retrieved immediately after emergency harsh events for relevant analysis and investigations.
  • Suitable for event data recorders of trains, oil tankers, heavy duty trucks, school buses or wherever you have a high demand for protection of your data information in extremely harsh conditions
  • High-temperature fireproof performance standard in compliance with that of the lightweight flight recording system: EUROCAE ED-155A 2025
  • As per IEEE Standard for Rail Transit Vehicle Event Recorders: IEEE 1482.1 – 2013 and CFR 49 Part 229 Appendix D Option A.
  • Two-year warranty.
  • Size: 160 x 110 x 80mm
  • NWT: 3.8kg

Key Features

  • Top fire resistance standard: Withstands high temperature fire up to 1,100 degrees centigrade for 120 minutes, followed by 260 degrees centigrade fire for 10 hours.
  • Proof against water: functioning effectively in deep water, protecting data files even in submerged conditions.
  • Crashworthy design: rugged metal casing for protection of the internal data information against shocking, storms, hard crash or explosions.
  • Certifications: CE and FCC certified for quality and reliability.
  • Unique technology: fire-proof technology patent approved at home and abroad

Applications

The TR-C model is versatile, making it suitable for various vehicles requiring robust data protection:

  • Trains: Essential for preserving EDR data in trains, providing critical information for post-incident analysis.
  • Oil Tankers: Vital for ensuring data integrity in extreme conditions, helping in safety and regulatory compliance.
  • Heavy Duty Trucks: Protects EDR data during severe accidents and environmental challenges.
  • School Buses: Ensures the safety data is preserved, supporting investigations and safety measures.

Ordering Information

  • Lead Time: 10-15 days
  • Payment Terms: TT or LC at sight
  • Sample Availability: Only paid samples available
  • Country of Origin: China
  • Warranty: Two-year warranty

Ensure your vehicle’s data is protected with MacFaith’s advanced solutions. Contact us today for more details and to place your order.

Technical Specifications



Item Details
Interface Connection Air connector with SATA2.0 or USB2.0 adaptor cable
Power Input: 5V ± 5%
<1.5W (SATA), <0.5W (USB)
Writing Circulation SLC: 100000 times
MLC: 10000 times
pSLC: 30000 times
TLC: 3000 times
Storage Capacity eMMC (SLC): 1G, 2G, 4G, 8G
eMMC (MLC): 16G, 32G, 64G, 128G
pSLC/TLC: 16G, 32G, 64G, 128G
SSD (MLC): 128G, 256G, 512G, 1024G
Fire Resistance 1100℃ / 60min or 260℃ / 600min
750℃ / 60min followed by 260℃ / 600min
Liquid Oil Immersion 48 hours
Water Immersion 100m, 240hr
Static Crush 168kN, 5min (3 axes)
Impact Shock 55g (all axes), 100ms
23g (all axes), 250ms
Pin Penetration 0.4cm² pin, 23kg, 1.5m
Alternative Electric Field (AEF) 64kA, 10MA/S, 1m
Temperature Range -40 to 75℃ (operation)
-40 to 85℃ (storage)
Standard IEEE 1482.1 – 2013
CFR 49 Part 229 Appendix D Option A
