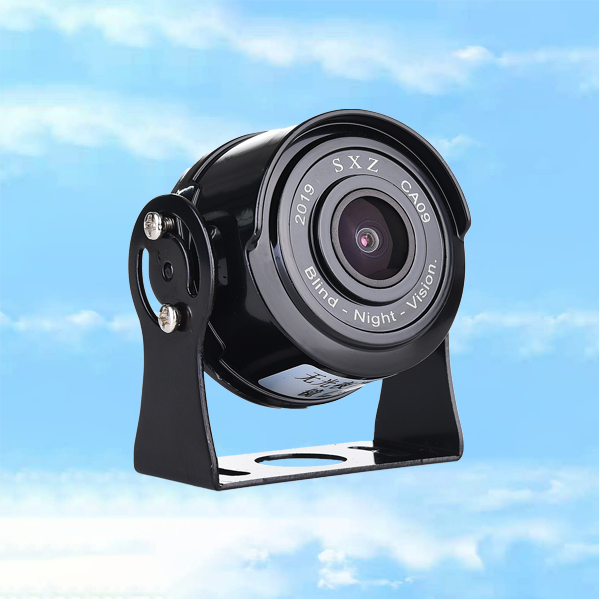

Exterior Waterproof Car Security Camera MF – Z201
Exterior Waterproof Car Security Camera MF – Z201 - Image 2

Exterior Waterproof Car Security Camera MF – Z201

  • Exterior video camera for vehicle security surveillance
  • High-quality GC2053 CMOS image sensor (1/2.9”)
  • AHD video output with PAL / NTSC compatibility
  • Excellent low-light performance with 0.001 Lux illumination
  • Built-in night vision with 3D DNR noise reduction
  • Wide 120° viewing angle with 2.8mm F1.4 lens
  • Mirror image mode adjustable via DVR settings
  • Operates on DC 9–16V, suitable for automotive use
  • IP67 waterproof design with sealed housing and stainless-steel screws
  • Temperature range: -20°C to 75°C
  • One-year warranty
Get a Quote

Technical Specifications

Specification Details
Model No MF – Z201 (Outside the car, front or rear)
Image Sensor 1/2.9 GC2053 CMOS
Pixels 720P / 1080P / 25fps, 720P / 1080P / 30fps
Video Output AHD PAL or NTSC format
Minimum Illumination 0.001 Lux
Night Vision Yes
DNR 3D DNR
SNR >38 dB
Lens 2.8mm F1.4
CRA 120
Electronic Shutter AUTO: 1/50 sec, 1/60 sec
Sensitivity 6400 mV/Lux·s
Image Coloring Color
Synchronization Internal
Mirror Effect Default mirror image mode, can be closed via DVR settings
Interface 4-pin air connector (1-VCC, 2-GND, 3/4-Video)
Cable Length 2 m
Voltage DC 9 – 16 V
Temperature Range -20℃ ～ 75℃
Moisture ≤90%
IP Code IP67 (waterproof adhesive sealing, SS screws)
