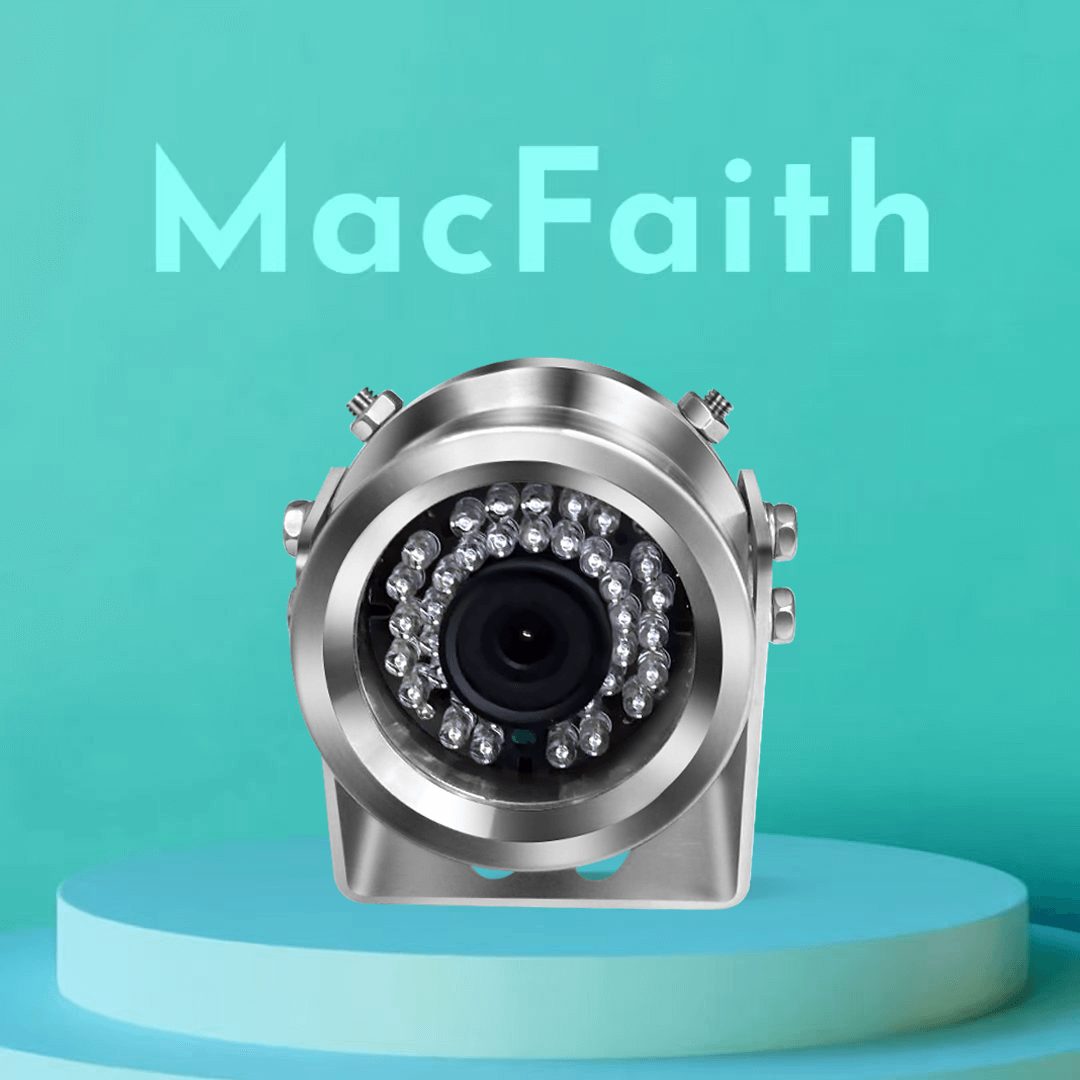

Explosion-Proof Camera MF – Z008

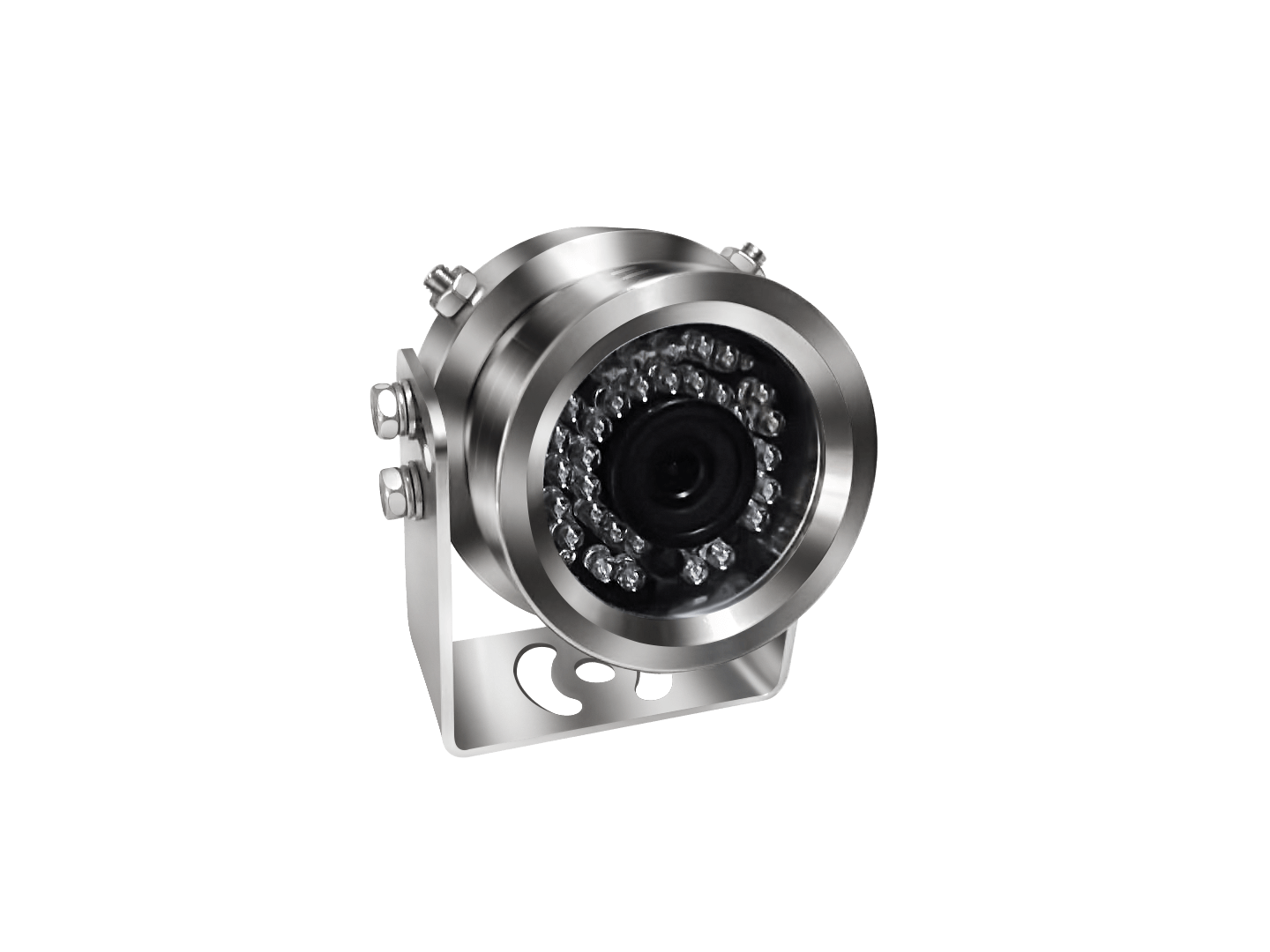

Explosion-Proof Camera MF – Z008 - Image 2
Explosion-Proof Camera MF – Z008 - Image 3

Explosion-Proof Camera

Model No MF – Z008

  • designed for flammable and explosive environments
  • AHD sharp images at 1080P/720P
  • PAL/NTSC video format for your option
  • Normal image mode by default that may be changed to mirror mode via DVR configurations, or via an embedded switch inside the camera ( optional )
  • 4-pin aciation connector
  • Rugged stainless steel housing
  • IP67 criteria for tough weather conditions
  • Excellent performance for security surveillance in hazardous locations and for real-time monitoring of oil tankers or dangerous goods vehicles
  • one-year warranty
Get a Quote

Technical Specifications

Specification Details
Model No MF – Z008 (explosion-proof)
Sensor 1/2.9 GC2053 CMOS
Video Format PAL/NTSC
Pixels 1280(H) × 720(V), 1920(H) × 1080(V)
Video Output AHD 720P/1080P
Minimum Illumination 0.001 Lux @ (F1.2, AGC ON), QLUX with IR
Shutter AUTO
Day/Night Mode AUTO
Synchronization Internal
Frame Rate 720P/1080P @ 25fps, 720P/1080P @ 30fps
Noise Reduction (NR) 3DNR
SNR 38 dB
Minimum Illumination (Electrical) 6400 mV/Lux·s
CRA 120
Lens 3.6 mm F2.0
Power 12V
Operational Temperature -20℃ to 80℃
Moisture < 90%
IP Rating IP67
Cable Interface 4-pin aviation connector
